Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

Blend with any room design with elegant form factor, minimum-bezel grilles available in black or white, and removable logos

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

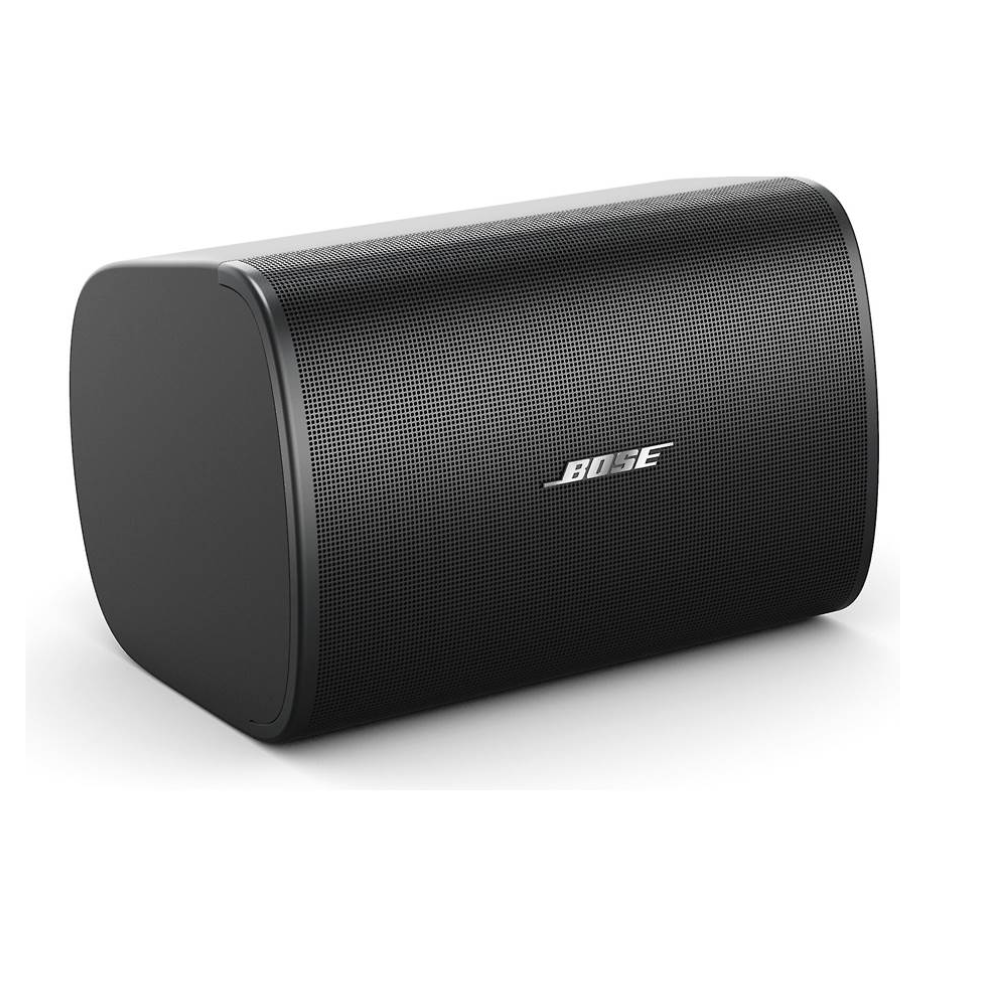

Install DM5SE outside — IP55 rating with standard aluminum grille for outdoor use

Vlerësime

Nuk ka ende vlerësime për këtë artikull.

Vlerësim mund të bëjnë vetëm klientët e regjistruar që e kanë blerë këtë artikull.

Specifikime

Parameter Single Loudspeaker Performance AES Component Test Bose Extended-Lifecycle Test
Frequency Response (–3 dB) 73 – 17,000 Hz
Frequency Range (–10 dB) 65 – 20,000 Hz
Nominal Coverage (1 – 4 kHz) 135° conical
Nominal Coverage Angle (1 – 10 kHz) 130° conical
Power Handling, long-term continuous 60 W 50 W
Power Handling, peak 240 W 200 W
Sensitivity (SPL/ 1W @ 1 m) 89 dB 89 dB
Calculated Maximum SPL @ 1 m 107 dB 106 dB
Calculated Maximum SPL @ 1 m, peak 113 dB 112 dB
Crossover 1.8 kHz (passive 2-way crossover)
Loudspeaker EQ Not Required, Bose EQ voicing and SmartBass Processing available
Recommended High-Pass Protection 65 Hz with recommended 24 dB/octave filter
Overload protection Resistor-network power reduction with automatic reset
Transformer taps 70V: 3, 6, 12, 25, 50 W, bypass
100V: 6, 12, 25, 50 W, bypass

Transducers:

Transducer Specification
Low Frequency 1 x 133 mm woofer (5.25-inch), weather treated
High Frequency 1 x 25 mm (1-inch) neodymium dome tweeter, coaxially mounted, weather-treated
Technology Dispersion Alignment System, 165 mm (6.5 in) system diameter
Nominal Impedance 8 ohms (transformer bypass)
