Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options

Deliver clear highs and surprising low-end for their size with coaxial two-way drivers — no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

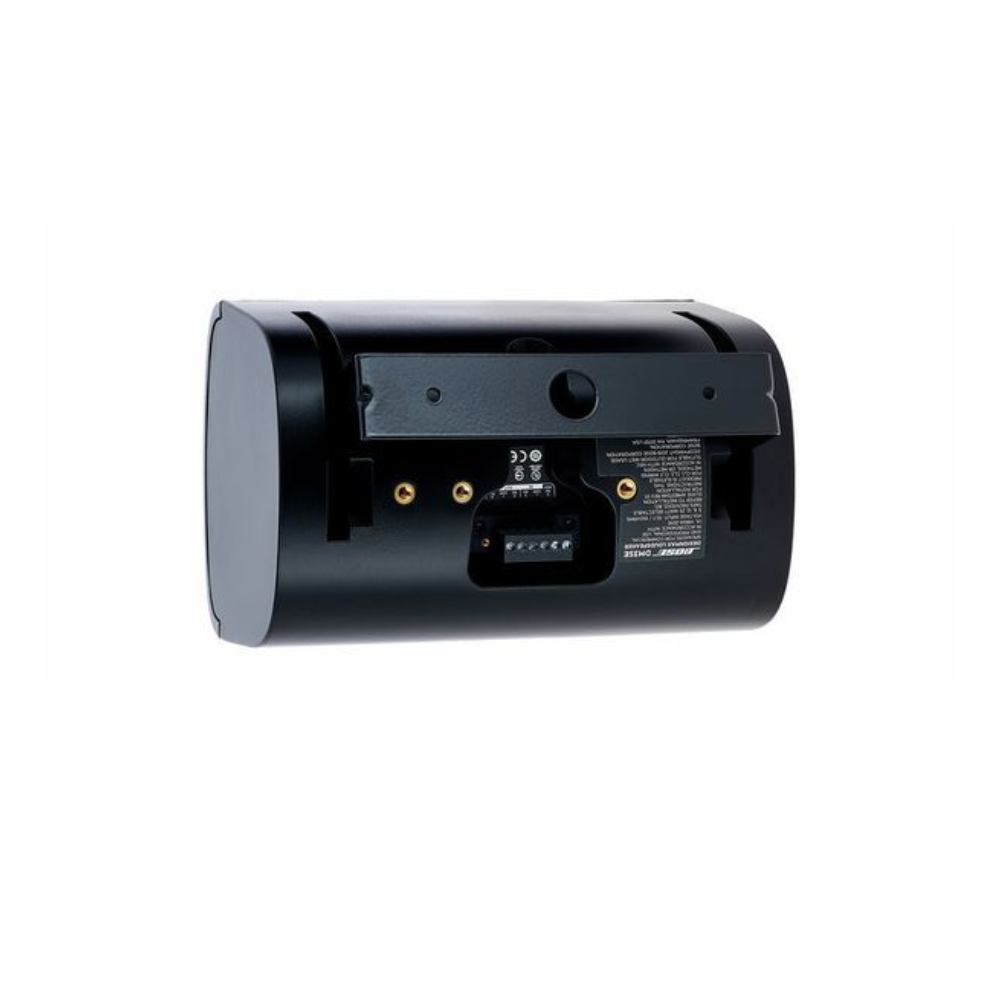

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

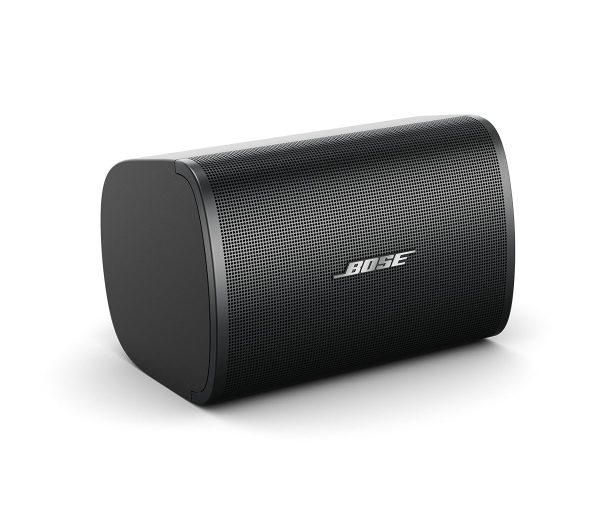

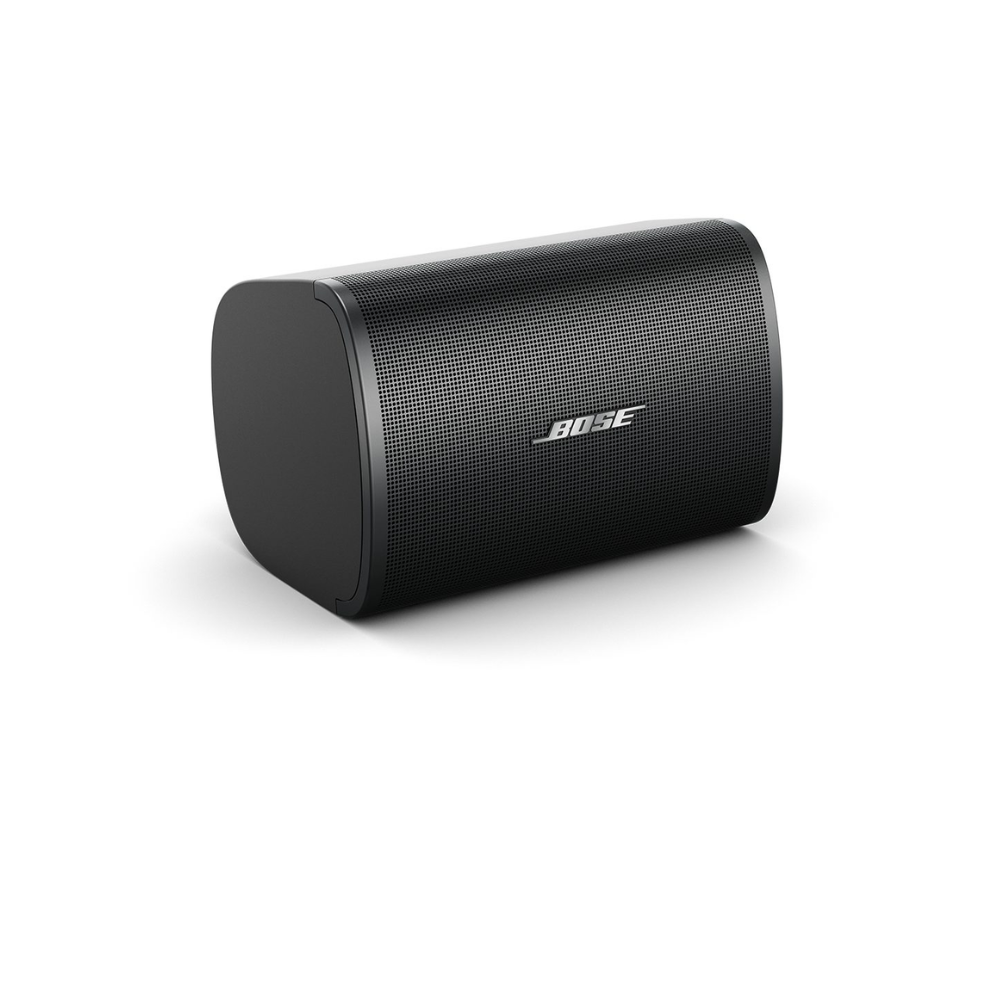

Install DM3SE outside — IP55 rating with standard aluminum grille for outdoor use

Vlerësime

Nuk ka ende vlerësime për këtë artikull.

Vlerësim mund të bëjnë vetëm klientët e regjistruar që e kanë blerë këtë artikull.

Specifikime

Safety Agency Ratings UL-1480A, S5591/ UL Listed, NFPA70, CE compliant
Physical:
Colors Black (RAL 9005), white (similar to RAL 9003), paintable
Enclosure Material Engineered plastics, highly UV fade-resistant
Environmental Testing Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather-resistant input cover
Grille Material Perforated aluminum, powder-coated finish, tamper-resistant design, paintable
Ingress Protection IP55
Logo Rotatable, removable
Net Weight 5.6 lb (2.5 kg), loudspeaker with grille (single)
Operating Temperature -25 °C to 70 °C (-13 °F to 158 °F)
Product Dimensions (H×W×D) 9.1 in × 6.1 in × 6.1 in (232 mm × 154 mm × 155 mm), loudspeaker / 9.1 in × 6.1 in × 6.7 in (232 mm × 154 mm × 171 mm), loudspeaker with bracket
Shipping Weight 16.0 lb (7.2 kg), pair

Performance:

Parameter Specification
Frequency Range (-10 dB) 75 Hz – 20,000 Hz
Coverage, Horizontal 140° conical
Coverage, Vertical 140° conical
Maximum SPL at 1 m 101 dB
Nominal Impedance 8 Ω (transformer bypass)
Power Handling, Continuous 30 W
Power Handling, Peak 120 W
Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available
Sensitivity (SPL/1 W at 1 m) 101 dB
Transformer Taps, 100V 6, 12, 25 W, bypass
Transformer Taps, 70V 3 W, 6 W, 12 W, 25 W, bypass

Transducers:

Transducer Specification
Crossover Frequency 1.7 kHz, passive 2-way crossover
Driver Protection Recommended high-pass protection 80 Hz with recommended 24 dB/octave filter
High-Frequency Transducer Quantity and Size 1 × 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted, weather-treated
Low-Frequency Transducer Quantity and Size 1 × 3.25 in (83 mm) woofe
